65027658
Appication:1. The pump can be used for a variety of hydraulic equipments.2. If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency.3. Punching machine, bending machine, Jack split hydraulic products.4. Working mode：Pedal Solenoid valve ControlOperation Instruction:1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa.3. The oil pump regular working temperature between 10℃~50℃,when find the oil temperature≥70 ℃ should stop using after continuous working under high pressure, let it self-cooling before use.4. The pressure of the relief valve and safety valve have been set before the pump leave the factory, the user can not arbitrarily increase the pressure,could only reduce it according to the actual working pressure, that can improve the life of the pump station.5. The motor must have reliable grounding.Package included:1 X Electric Driven Hydraulic Pump1 X Oil Hose(1.8M)1 X Quick Connector

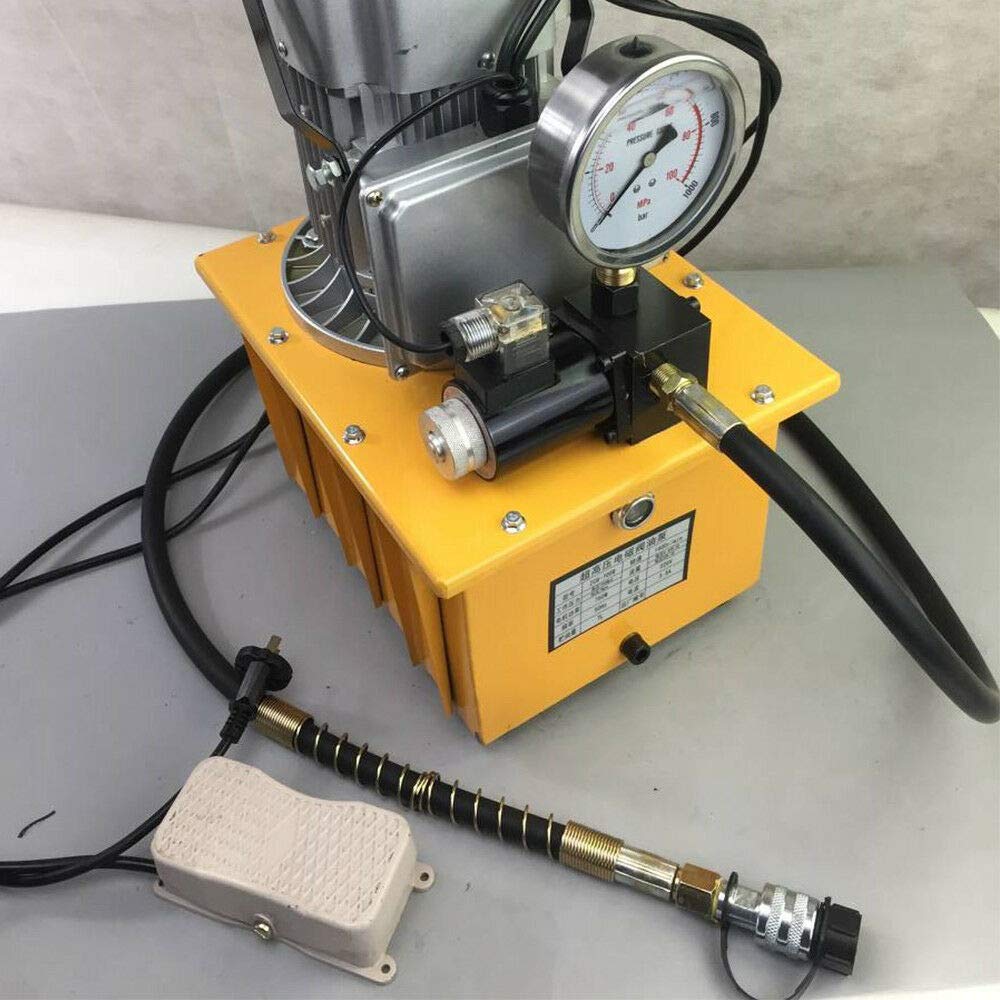

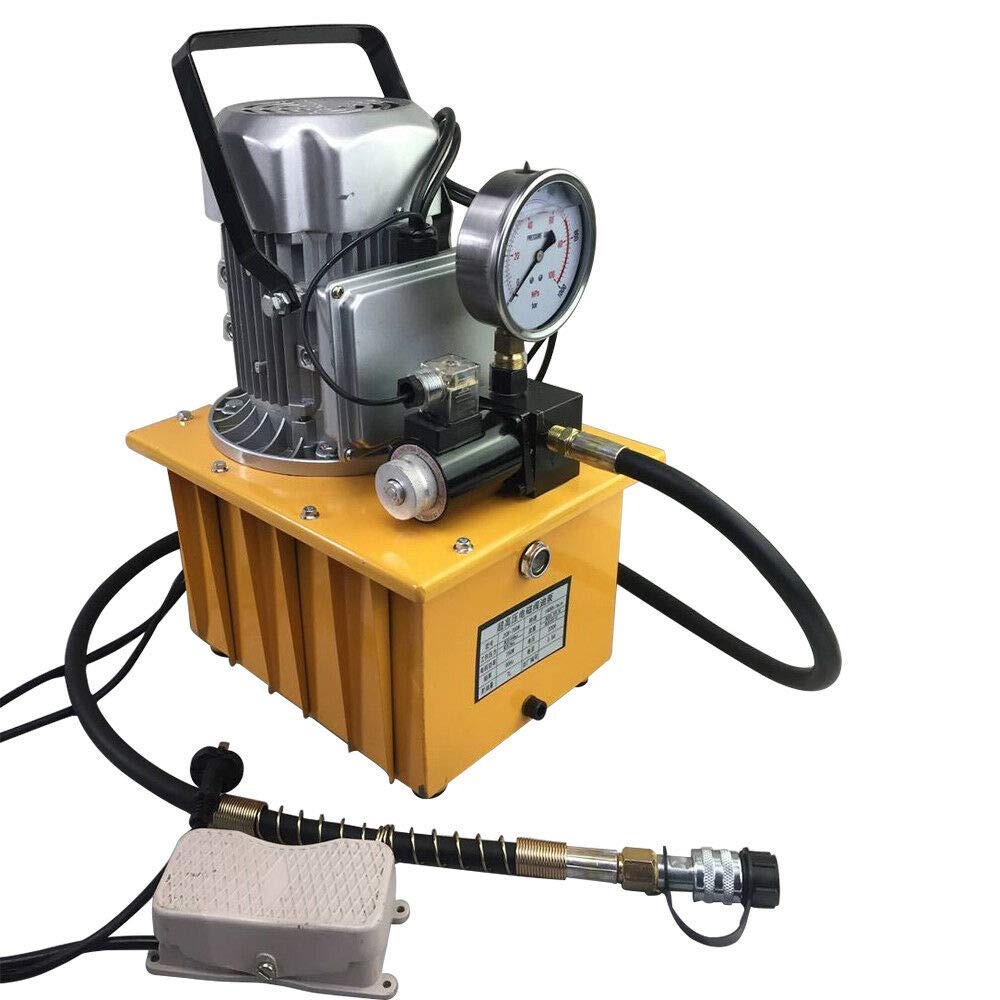

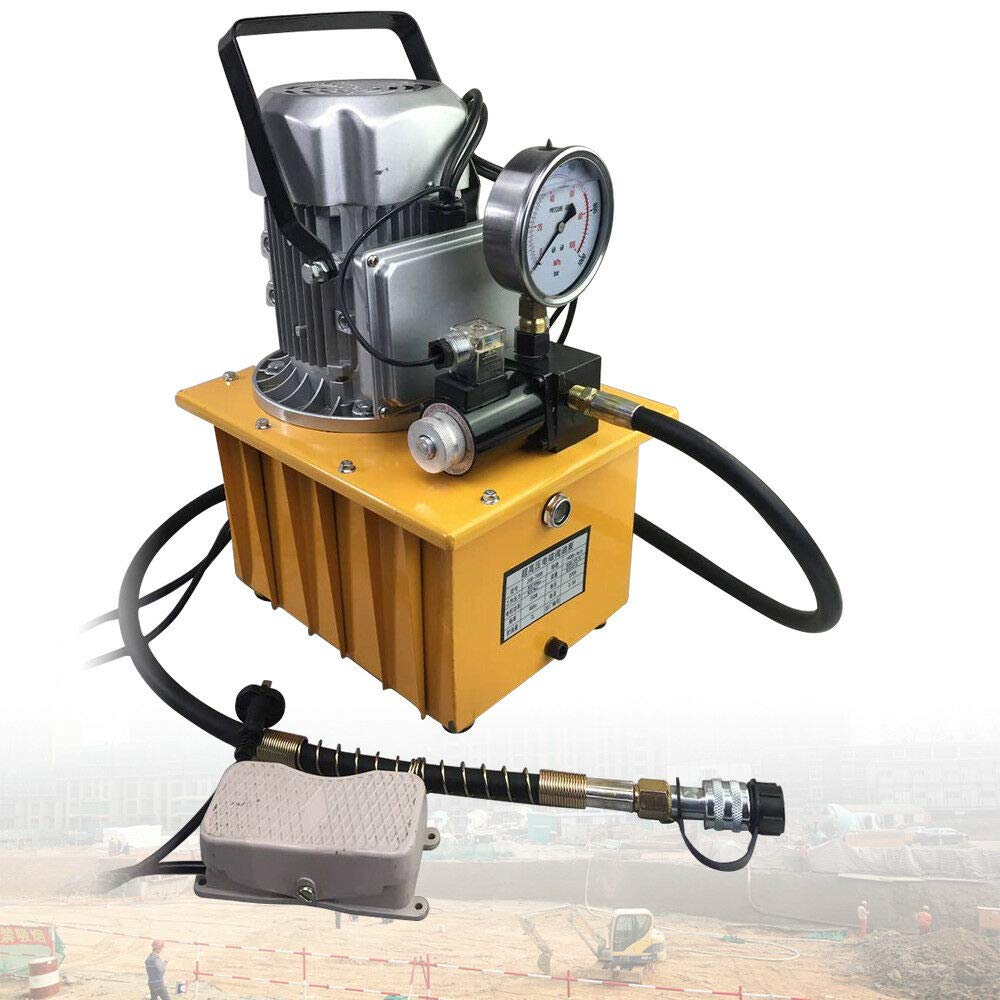

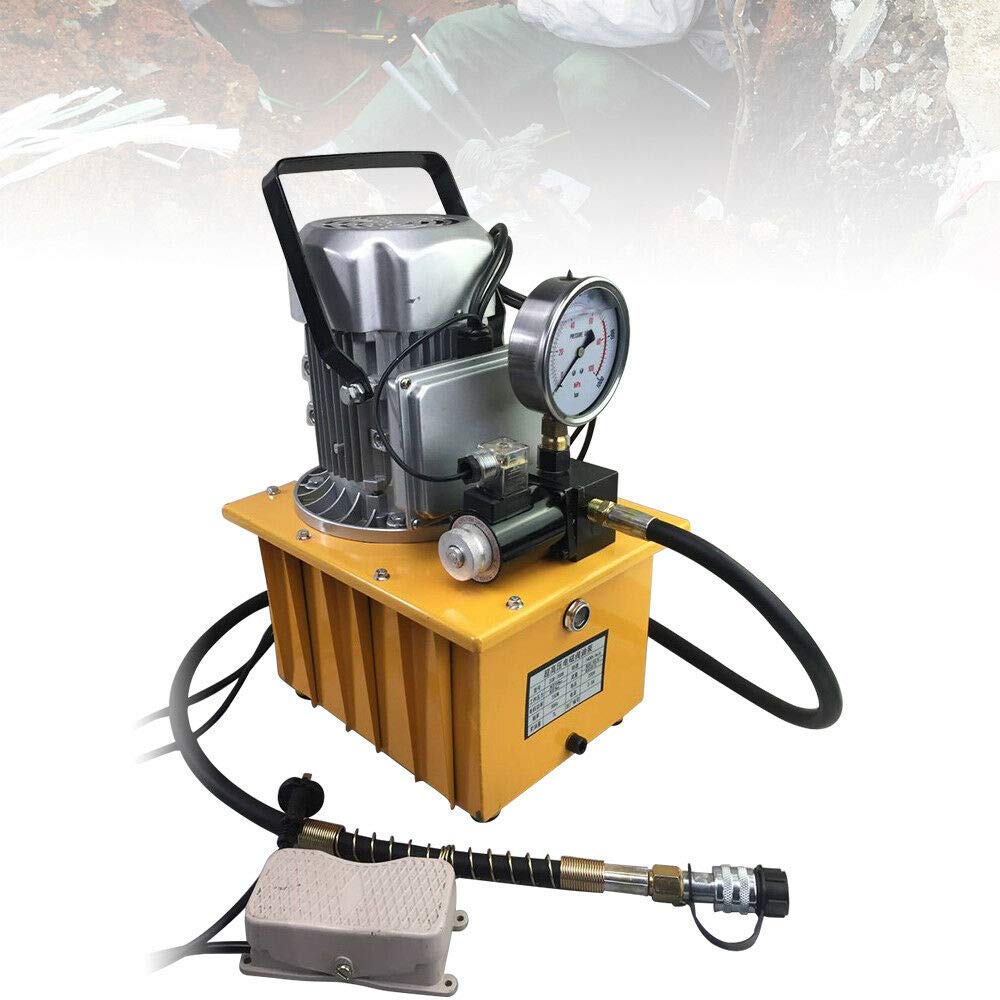

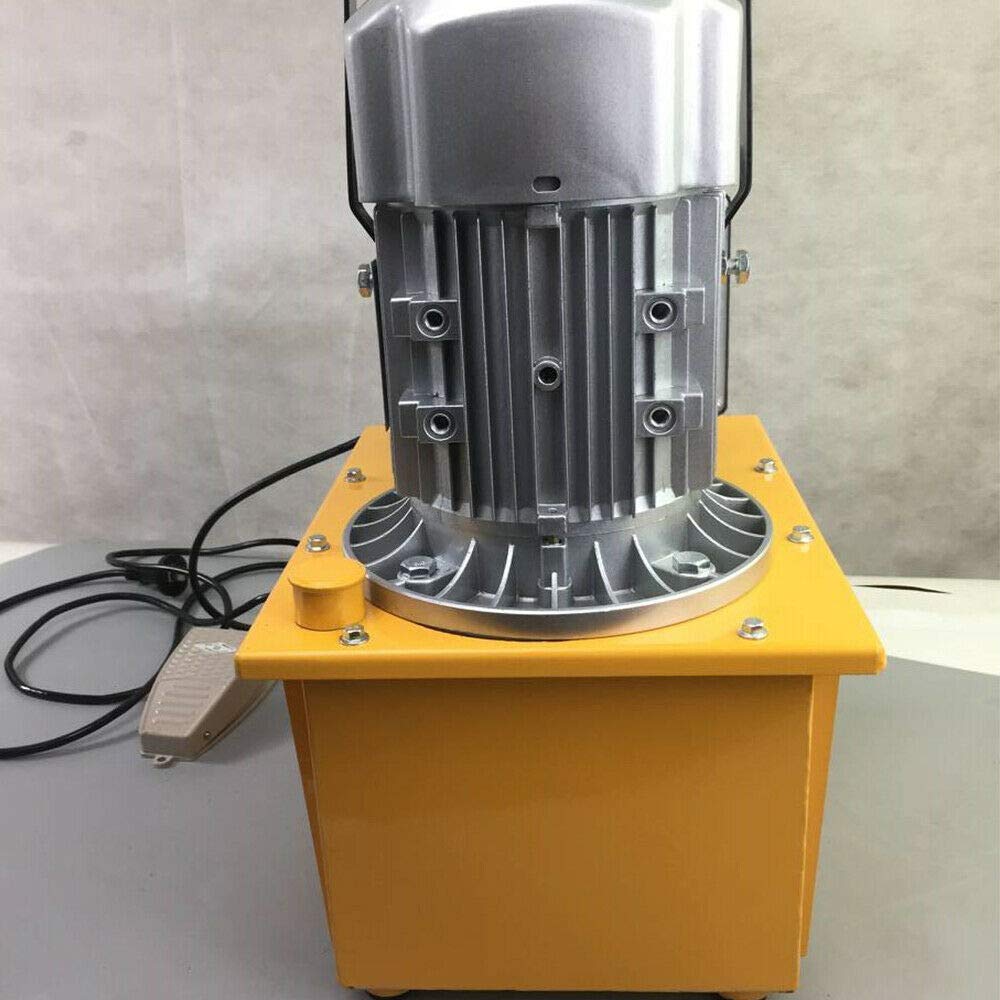

[SPECIFICATIONS] Input voltage AC 110V 60HZ. Flow rate 0.6L/min(＞7Mpa) - 5L/min(＜7Mpa). Working pressure 290PSI - 10152PSI{2Mpa - 70Mpa(700Bar)}. Oil capacity 7L. Motor power 750W. Motor speed 1400r/Min. Machine size 360X280X440mm(14.2”x11”x17.3”). N.W. 28KG
[PREMIUM MATERIAL] This dump trailer hydraulic pump is made of stainless steel and is durable. The hydraulic power pump made of high temperature resistant, environmentally friendly and non-toxic stainless steel has a solid structure. The hydraulic pump with high strength and hardness is also more wear-resistant and durable, safe and easy to clean, and has a longer service life.
[EASY TO OPERATE] After connecting this Pedal Solenoid valve Controled oil return pump to the equipment, turn on the motor and place the operating valve in the pressurized position after the motor rotates for 1-2 minutes. At this moment, the hydraulic oil enters the cylinder to work, and the output hydraulic oil will follow The increase in the load increases until 70Mpa, you can slowly try and choose the appropriate working pressure in this interval.

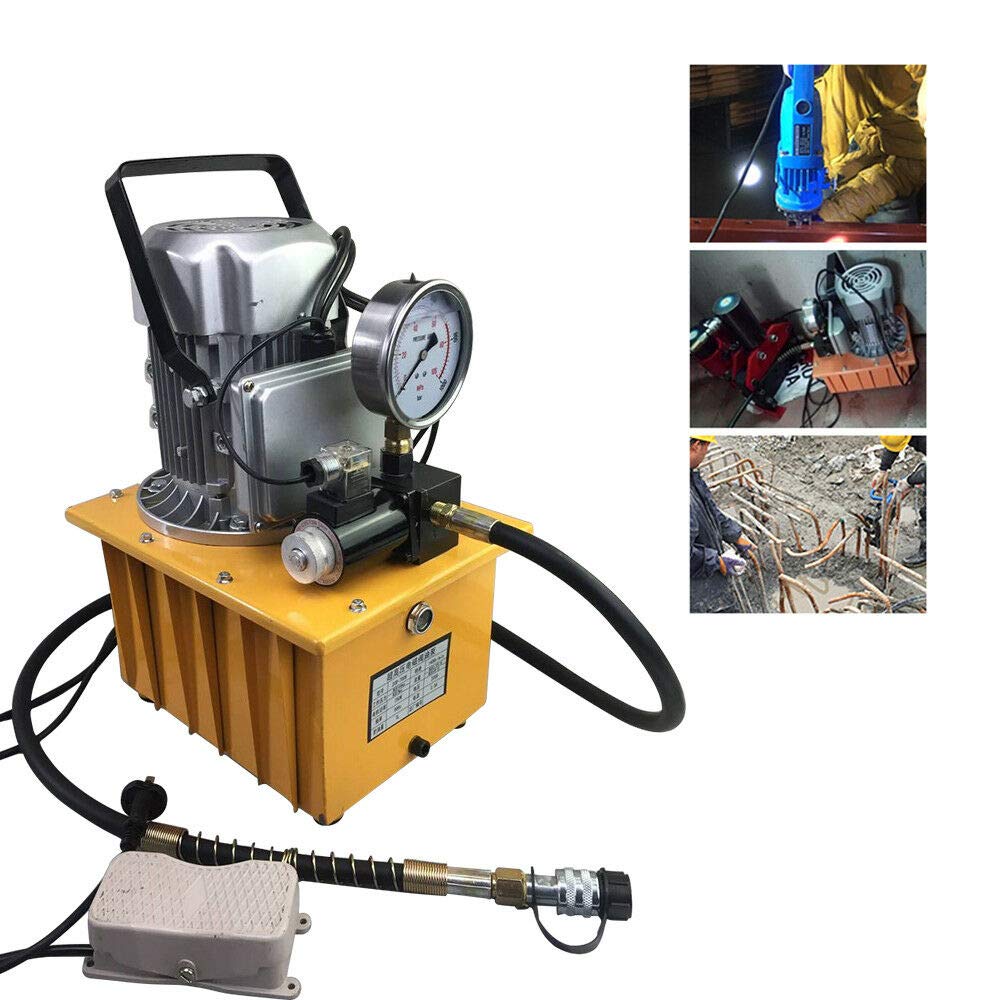

[WIDE APPLICATION] This electric hydraulic pump can be used for a variety of hydraulic equipment, such as scissor lifts, dump trailers, dump trucks, lift gates, trailers, wreckers, motorhomes, boat lifts, trucks, agricultural equipment, etc. It can complete a variety of tasks such as lifting, straightening, cutting, pressing, bending, assembly and disassembly. The use of electric hydraulic pumps can effectively reduce physical labor and maximize work efficiency.
[QUALITY ASSURANCE] We have strict quality control system, our products are put into the market after rigorous testing. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
